Product name |
Rock Wool Panels Sandwich Panels Composite Panels Metal Cladding Panels Wall Cladding Panels |
Material Structure |
Metal(Front)+Core+Metal(Back) |
Applications |
Commercial Building Inductrial Building Factory Gym Hospital School,etc. |
Features |
Fire Proof(resistant) Thermal Insulation Enviroment Friendly |
| Product Series | Please click the serial number to learn detailed specifications of our products: 8001 - Industrial Building Curtain Wall |
Metal Sheet
|
Steel |

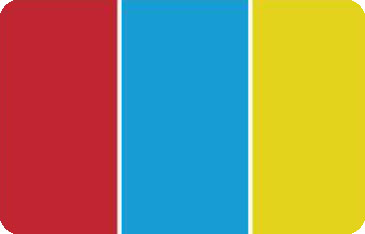

 Color Coated Steel Sheet |

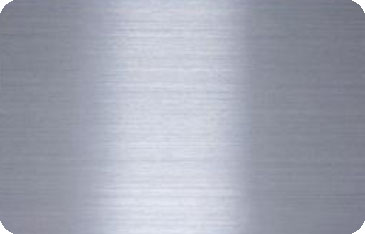

 Stainless Steel Sheett |

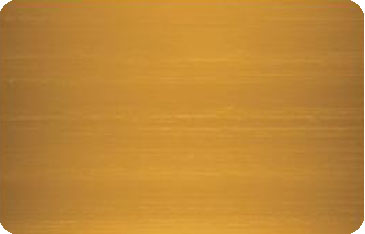

 Galvanized Steel Sheet |

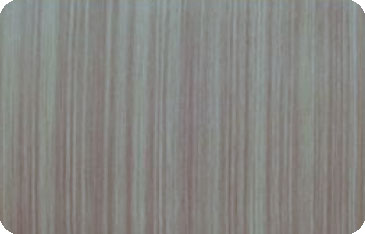

 Film Laminated Steel Sheet |

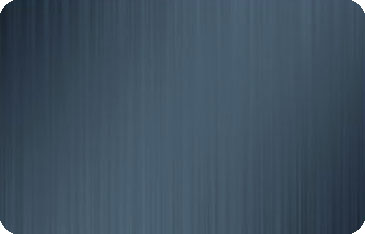

 Coated Steel Sheett |
|||||
Aluminum |

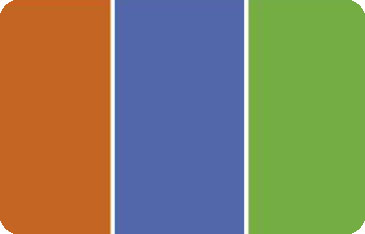

 Color Coated Aluminum Sheet |
Panel
|

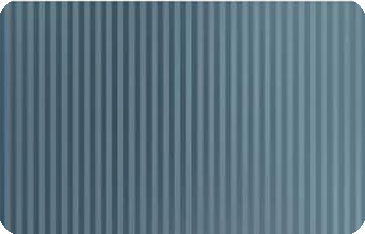

 Ripple-like Corrugation |

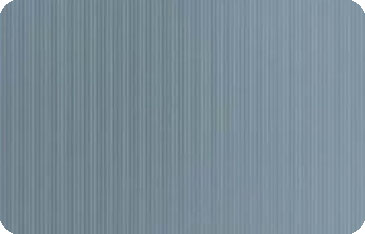

 Mini Corrugation |

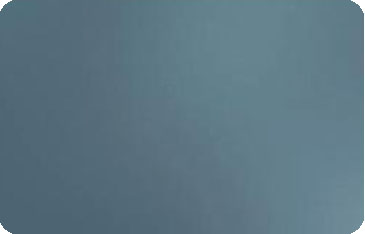

 Mirror |

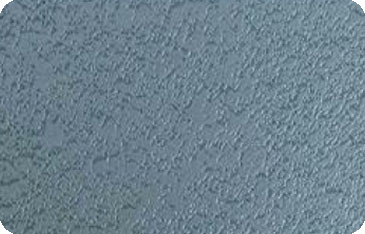

 Embossing |
|

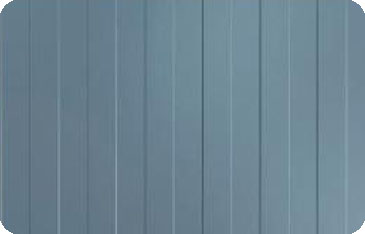

 Square Bar Reinforced |

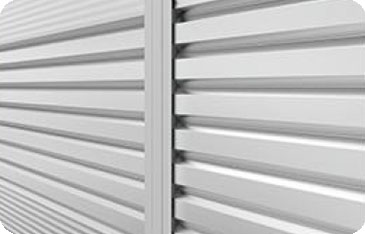

 V Shaped Reinforced Beam |

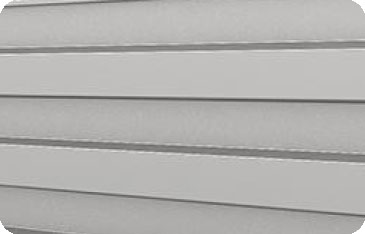

 T Shaped Reinforced Beam |
|||
 Beige |
 Bone White |
 Cosmic |
 Crimson |
||
 Deep Blue |
 Ivory White |
 Sea Blue |
 Shale Grey |
||
 Sky Blue |

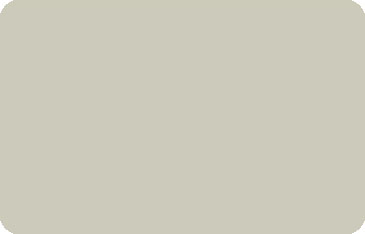

 Surfmist |
Specifications
|
8001A
|
8001B
|
8001C
|
8001D |
|
Material
|
Metal Sheet |
Steel Sheet Material:Al-Zinc coated stel coil（AZ150 ） Strength: G280/G300 Front Sheet Surfave Handling: Nano-particl reinforced Pe(Self cleaning) Film Thinkness: 25μm Front Sheet Thickness:0.6-0.8 Back Sheet Thickness:0.4-0.6s Color Deviation: No, within 5 years Penetration Caused by Corosion: No, within 30 years Aluminum Sheet Material:Al/Mg/Mn Alloy Front Sheet Surface Handling:Inorganic PVDF painting(self cleaning) Film thinkness: 25μm Front Sheet Thickness :0.7-1.0 Back Sheet Thickness:0.4-0.7 Color Deviation: No, within 5 years Penetration Caused by Corosion: No, within 50 years |
|||
Core |
Material:Rock Wool Density(kg/m³): 120-140 Combustion Performance:Class A |
||||
Panel Surface Patterns |
As above | ||||
Panel Surface Colors |
As above | ||||
Panel Width(mm) |
Standard:1000; Optional:500-1200; Suggested:<15000 |
||||
Support Type |
Single-span,or Multi-span | ||||
Panels Joint Width(mm) |
20 |
||||
Panel Thickness
(mm) |
50
|
75
|
100
|
150 |
|
Load(kn/m²)
/ Rafter Spacing (mm) |
0.5 |
5652 |
7470 |
9079 |
11882 |
1.0 |
4217 |
5605 |
6827 |
8927 |
|
1.5 |
3490 |
4662 |
5689 |
7434 |
|
2.0 |
3018 |
4050 |
4951 |
6465 |
|
2.5 |
2674 |
3604 |
4414 |
5759 |
|
3.0 |
2408 |
3259 |
3996 |
5212 |
|
Panel Weight
(kg/m²) |
15.88 |
18.72 |
21.56 |
27.24 |
|
Thermal Conductivity Coefficient
(w/m²k) |
0.76 |
0.53 |
0.40 |
0.27 |
|
| Remarks: All calculations in the above table are based on: 1. Rock wool density: 120kg/m³ 2. Front steel sheet thickness: 0.6mm 3. Back steel sheet thickness: 0.5mm 4. Deflection span ratio L/100 |

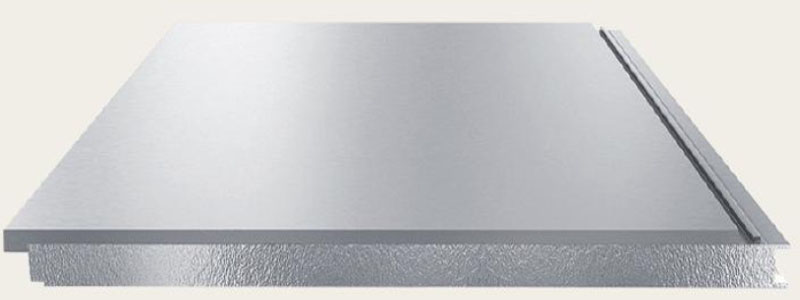

Sample Panel |
 |

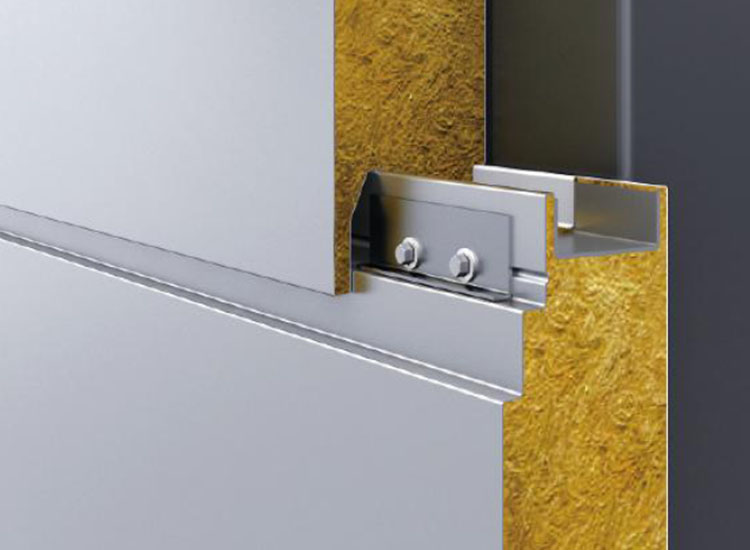

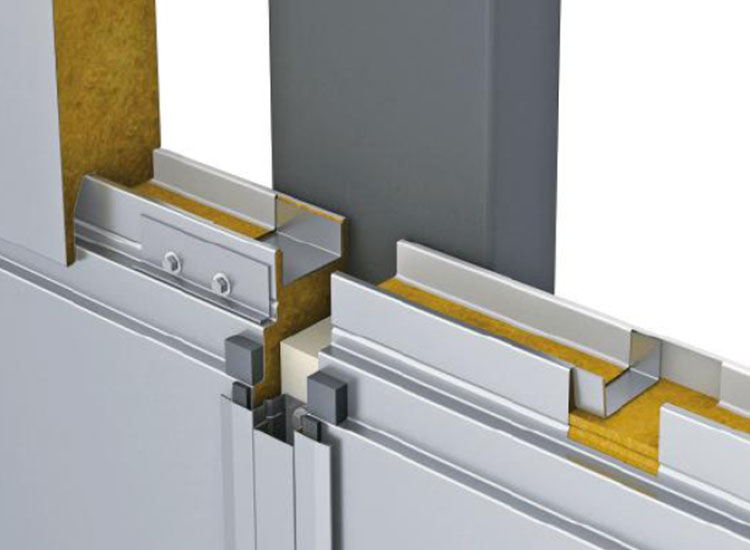

Joint Visual Effect |
  |

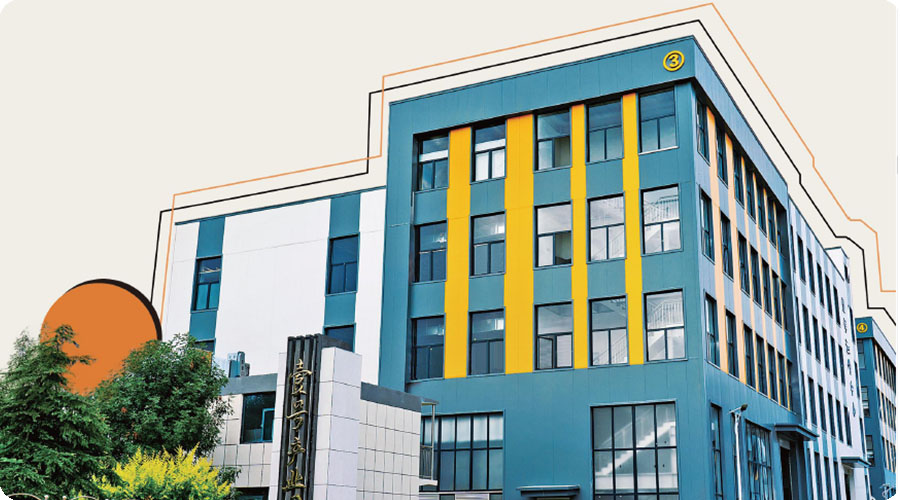

Typical Project |
 |
